  1. Custom Lifting and Pulling Solutions
  2. 100T Hoisting System –The Netherlands

CASE STUDY: CUSTOMIZED 100T HOIST SYSTEM

Contact Us
Request a Quote
Request Service, Parts or Support
Find a Distributor

CUSTOMER LOCATION: NETHERLANDS

SCENARIO: CUSTOMER IN THE NETHERLANDS NEEDED A HYDRAULIC HOIST SYSTEM WITH THE ABILITY TO:

  • Control hoists and trolleys two different ways: with manual levers and remotely
  • Live readings and ability to continually monitor the weight of each hoist
  • Endure harsh conditions

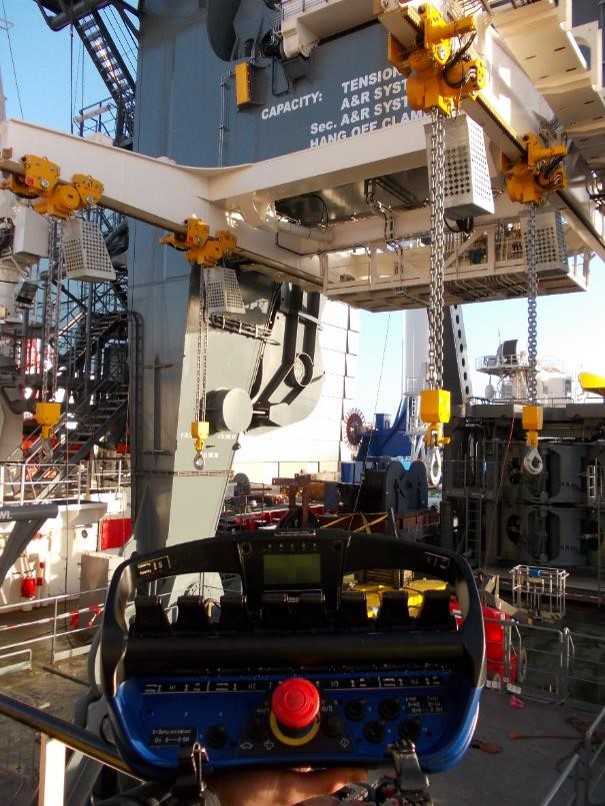

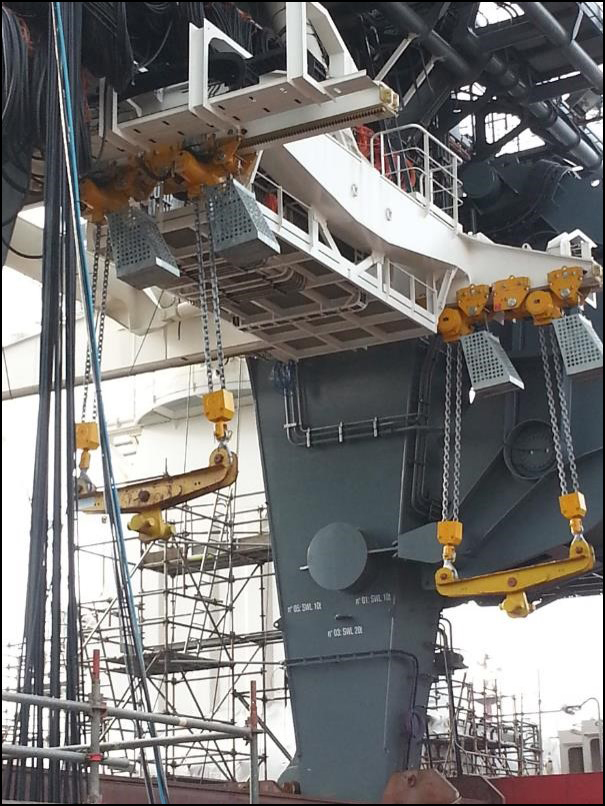

SOLUTION: 100T SYSTEM (4 X 25T)

  • Added a wireless radio remote control system (with load display)
  • Included a load measurement sensor on each hoist
  • Adjusted the articulated trolley to allow side pulling operations up to 20°
  • Used sandblasting and offshore paint, plus extra paint layer and painting log
  • Achieved Lloyds witness test

oil and gas solutions

STANDARD FEATURES OF THE 100T SYSTEM INCLUDE:

  • Radio remote control system (with load display) to operate 4x25T
  • Load measurement sensor on each hoist
  • Articulated trolley allowing side pulling operations up to 20°
  • Integrated overload protection
  • Top and bottom limit switches
  • Clevis mounted
  • Sandblasting and offshore paint
  • Trolley guide rollers
  • Sandblasting and offshore paint (QZ) + Extra paint layer Total 325 µ + Painting log
  • Lloyds witness test and test report
  • 2 Control boxes (4 hydraulic levers each) to operate 4x25T

oil and gas custom solutions

DO YOU NEED A REMOTE CONTROLLED UNIT IN A DIFFICULT ENVIRONMENT?

LET INGERSOLL RAND CUSTOMIZE PULLING AND LIFTING EQUIPMENT LIKE THE 100T SYSTEM (4X25) FOR YOU TODAY.
